AH-Series-Motion-CPU

AH Motion is the advanced motion control series with dedicated motion control CPUs and shares the same modules with AH series PLCs. Through the motion control network, such as EtherCAT, AH Motion CPU can perform high-speed, high-precision machine control with the connected servo drives on the motion network.

Product Introduction

Features & Benefits

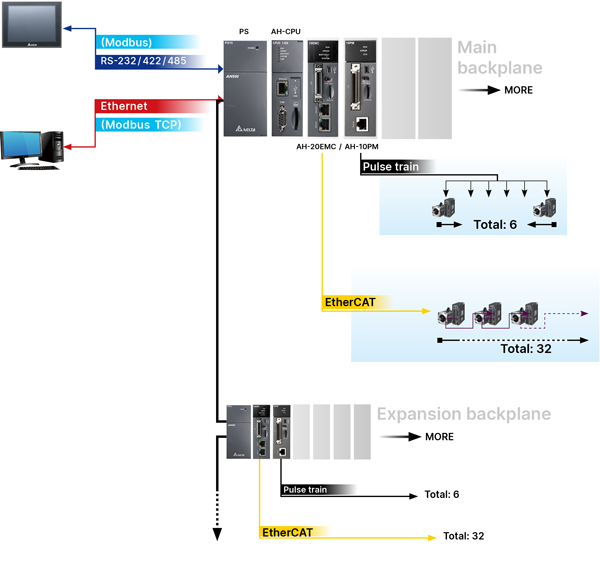

Standard Motion Control System

  • Provides EtherCAT and pulse train solutions for customers.
  • Motion modules can independently take care of both the logic and motion control. Users can write and download the programs to the motion modules.
  • All motion modules support the standard motion control system.
  • All motion modules can be installed on the local backplanes
  • Motion control functions:

     Performance:
     – Pulse train module: Max. 1 MHz output
     – EtherCAT module: Min. synchronization time at 8 / 16 / 32 axes is 0.5 / 1 / 2 ms

  • Supports UD / PD / AB / 4AB input modes
  • Supports MPG inputs / E-Cam / G-code / 2 ~ 6 axes linear interpolation / 2 axes arc interpolation / 3 axes helical interpolation

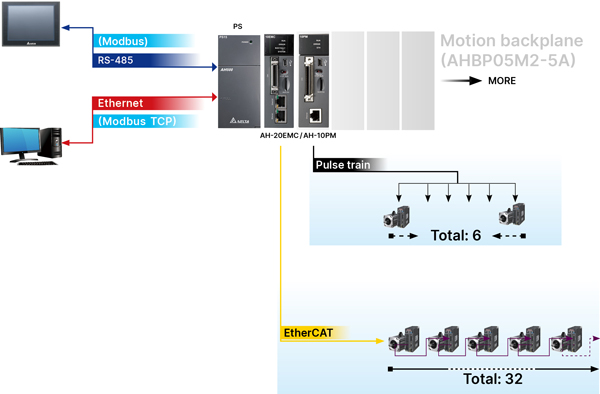

Compact Motion Control System

  • Provides EtherCAT and pulse train solutions for customers.
  • AHxxEMC-5A motion controller can be installed on the CPU slot of the specific motion backplane and
  • Compact motion control system does not support the expansion backplane.
  • Motion modules can be installed on the I/O slot of the motion backplane.
  • Motion control functions:

     Performance:
     – Pulse train module: Max. 1 MHz output
     – EtherCAT module: Min. synchronization time at 8 / 16 / 32 axes is 0.5 / 1 / 2 ms

  • Supports UD / PD / AB / 4AB input modes
  • Supports MPG inputs / E-Cam / G-code / 2 ~ 6 axes linear interpolation / 2 axes arc interpolation / 3 axes helical interpolation

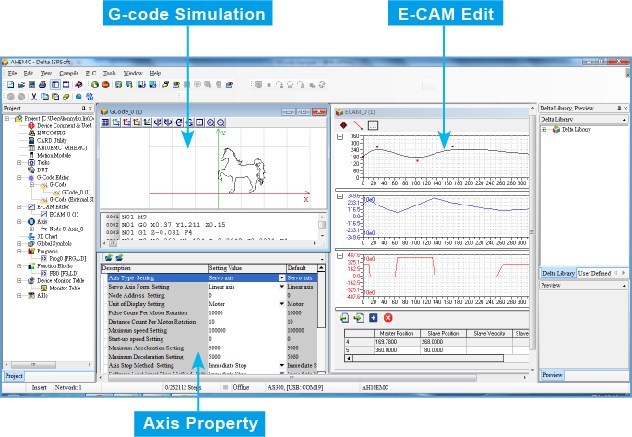

ISPSoft V3 integrates the logic and motion program editors into one software. Customers can use standard PLCopen® function blocks, as well as Delta’s self-developed function blocks to easily achieve different control requirements. (from ISPSoft introduction page)

Specifications

  • EtherCAT communication motion control (100 Mbps)
  • Min. synchronization time at 8/16/32 axes is 0.5/1/2 ms
  • Supports 2 ~ 6-axis linear interpolation, 2-axis arc interpolation and 3-axis helical interpolation
  • Built in Ethernet communication port
  • Supports Micro SD card
  • Supports EtherNet/IP

     – Adapter mode
     – Supports I/O connection & explicit message
     – Connections: TCP = 16 ; CIP = 32
     – RPI: 2 ~ 1,000 ms
     – PPS: 3,200
     – 250 words / connection


  • CPU execution speed: LD instruction @ 0.08 μs
  • Program capacity: 256 k steps
  • Data register: D=64 k words / L=64 k words
  • Supports UD / PD / AB / 4 AB input modes
  • Built-in Mini USB programming communication port
  • Supports G-code
  • Supports hot-swapping function
  • Diagnose function
  • Module status LED indicator
  • Supports installation on CPU slot of motion backplane and working as CPU (Note)
  • Max. quantity of FB instance is 4096
